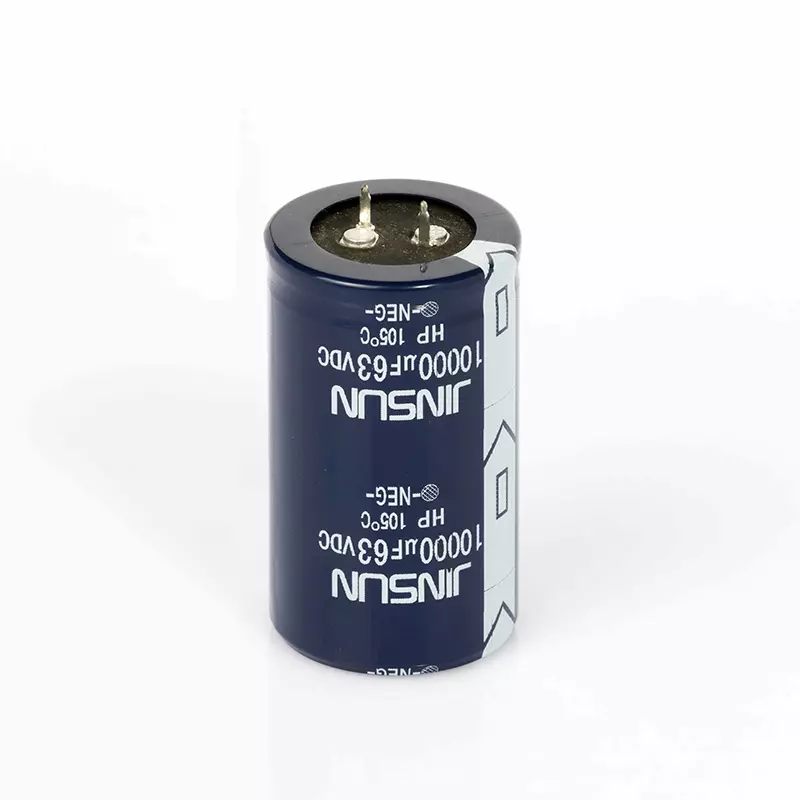

Snap-in Capacitor

Product Name

High-voltage/long-life/low-impedance aluminum electrolytic capacitors

Product Overview

This series of aluminum electrolytic capacitors are made of high-purity electrolyte and high-quality aluminum foil materials, featuring high voltage resistance, low leakage current, and high stability.  They are suitable for high-temperature and high-reliability scenarios such as industrial power supplies, frequency converters, LED drivers, and home appliance control boards.  It has passed the RoHS certification and meets international environmental protection standards.

Core features

✅ Long-life design: Service life of 1000- 20,000 hours at 105℃ (optional), significantly enhancing the durability of the equipment

✅ Low ESR value: Optimize the internal structure to reduce the equivalent series resistance and meet the requirements of high-frequency circuits

✅ wide temperature range: -40℃ to +105℃ (or +125℃) for stable operation

✅ Explosion-proof design: Dual safety protection of pressure relief valve and explosion-proof slot

✅ high withstand voltage: voltage range 6.3V-550V (customizable according to model)

Technical parameters

Parameter item value/description

Capacity range: 1μF to 100,000 μF

The rated voltage of 6.3 V/V/V/V / 25 to 35 16 V / 50 V / 63 V / 100 V / 200 V / 400 V / 450 V, etc

Capacity deviation ±20% (standard) or ±10% (optional)

Leakage current ≤0.01CV (μA) or lower

The specific ESR value @20℃,100kHz (e.g. 50mΩ)

Size (D×L), such as φ10mm×12mm (indicate the specific size)

Application scenarios

🔹 switching power supply input/output filtering

🔹 inverter, frequency converter energy buffer

🔹 automotive electronics (conforming to AEC-Q200 standard model)

🔹 industrial control board DC/DC conversion

🔹 consumer electronics (television, audio equipment, etc.)

Quality certification

RoHS & REACH compliance

UL certification (optional)

ISO 9001 quality management system

Packaging and Delivery

📦 Standard packaging: 100pcs/ roll tape or bulk (customizable)

Delivery time: 15 days for regular models, negotiable for special specifications

Q&A

Q: Can it replace imported brands (such as Nichicon and Rubycon)?

A: The parameters of this product are benchmarked against those of international first-line brands, offering the same performance at a better cost-performance ratio and supporting sample testing and verification.

Q: How to select the type in high-frequency circuits?

A: It is recommended to choose the low ESR series (such as models marked with "L" or "LP" at the suffix), and refer to the frequency characteristic curve in the specification sheet.

Value-added services

Free specification sheet and 3D model

Technical support: guidance on circuit design and selection

Custom service: Special voltage/capacity/pin form can be negotiated
